Single-ended and Balanced LCD Premium Cables

CBL-XL-1030

Premium cable features cryogenically treated four conductor stranded wire, each wire consisting of a large number of extremely fine strands of single-crystal OCC copper with a combined cross section equivalent to AWG 20 that ensures low resistance and negligible signal loss. The white/black cable uses silver-plated copper strands. Crystals within strands are oriented in a specific pattern to provide the best possible signal transmission.

Specifications

  • Very flexible, tangle free
  • Non-microphonic jacket
  • Length: 2.5m; Weight: 110 g

Connectors:

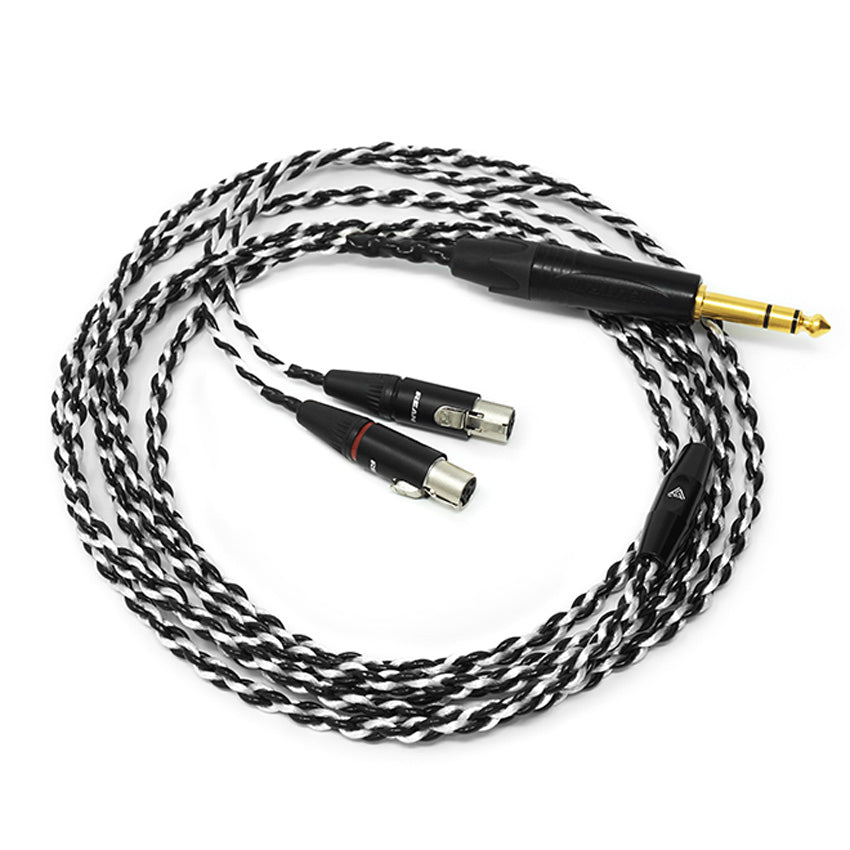

  • 1/4" (6.3mm) stereo OR 4-pin balanced XLR plug for connection to amplifier

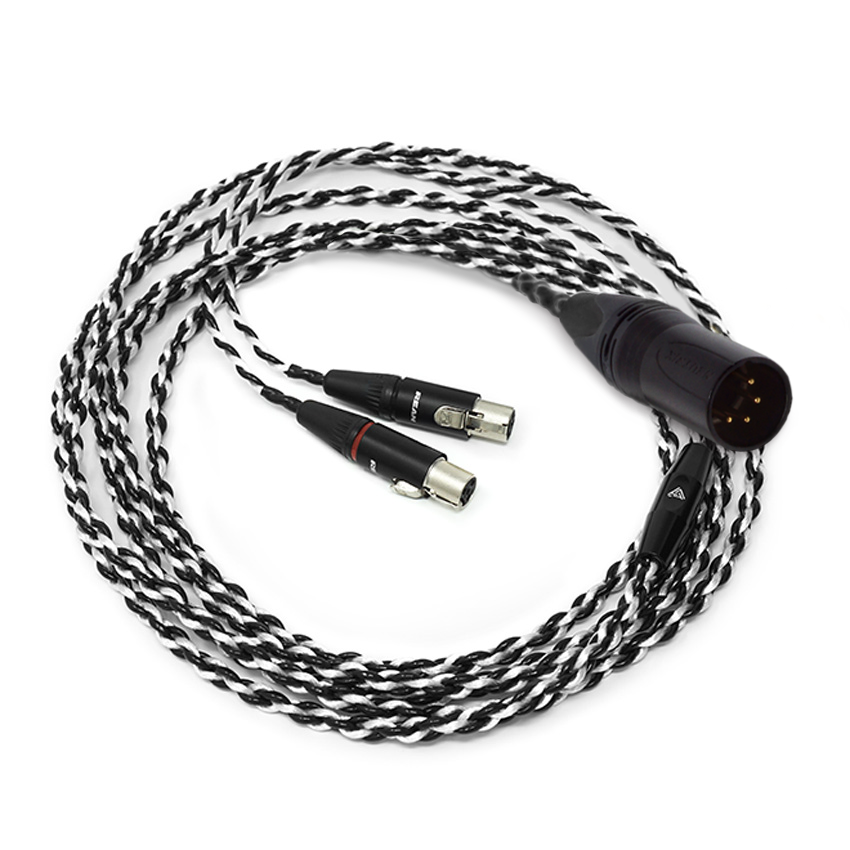

  • 2 x 4-pin mini XLR for headphone earcup connection

Electrical Specifications:

  • Resistance: 12 milliohms per foot
  • Capacitance: 10 picofarads per foot
  • Inductance: 0.15 microhenrys per foot
  • Dielectric strength:  1000V
