CBL-BL-1030

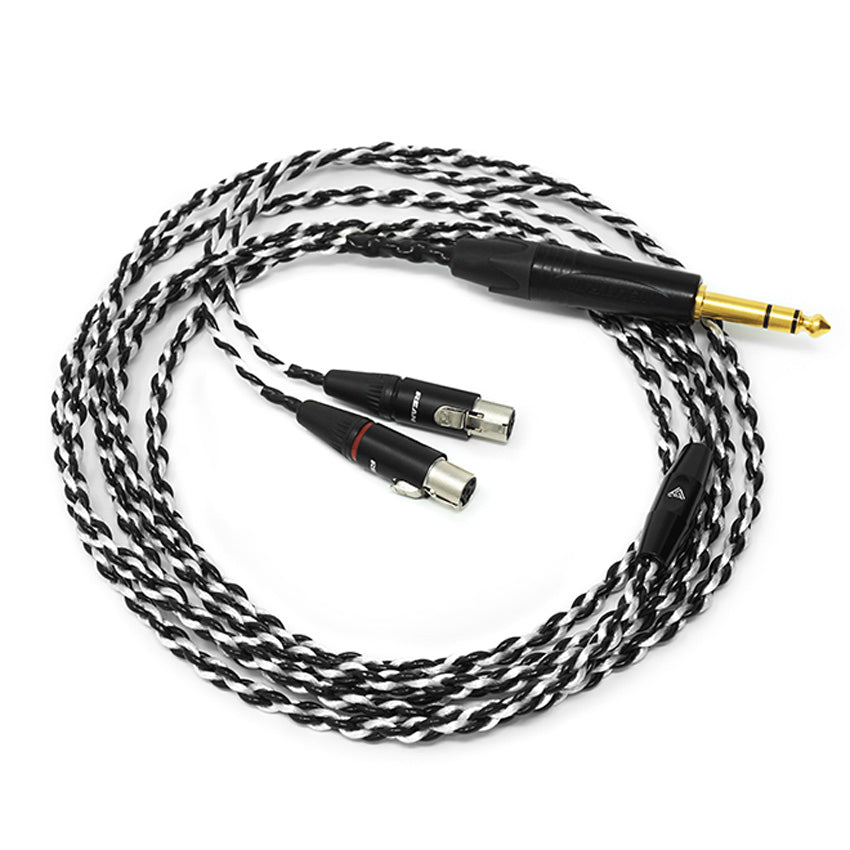

LCD-4 Premium Braided Cable

Premium cable features cryogenically treated four conductor stranded wire, each wire consisting of a large number of extremely fine strands of silver-plated single-crystal OCC copper with a combined cross section equivalent to AWG 20 that ensures low resistance and negligible signal loss. Crystals within strands are oriented in a specific pattern to provide the best possible signal transmission.

Specifications

• Very flexible, tangle free
• Non-microphonic jacket
• Length: 2.5m; Weight: 110 g

Connectors:
• 1/4" (6.3mm) stereo OR 4-pin balanced XLR plug for connection to amplifier
• 2 x 4-pin mini XLR for headphone earcup connection

Electrical Specifications:
• Resistance: 12 milliohms per foot
• Capacitance: 10 picofarads per foot
• Inductance: 0.15 microhenrys per foot
• Dielectric strength:  1000V
